AL50 FNPTI Flight Simulator with motorized single channel projector and screen. The aerodynamic behaviour of the included flight models is close to reality and allows pilots
to experience highly realistic as well as reliable flight sensations.
Pilots can carry out all normal as well as emergency checklists due to entirely active flight panels and controls. ALSIM flight trainers distinguish themselves by user-friendly configurations as well as easy upgrades.
Our machines offer the most cost-effective solution on the market.
The AL50 puts simulation training within reach for private pilots. This one seat flight trainer simulates a Single Engine Piston (SEP) aircraft most suitable for flight clubs as well as flight schools.
Standard Equipment* A one seat cockpit
* An adjustable seat
* Rudder with brakes
* Wheel with electrical trims: push to talk, automatic pilot disconnect button, chronometer
activator
* Spring force control loadings (BITD version)
* Electric control force loading on a pitch axis (FNPT l version).
Simplified Mechanical System All mechanical elements of the flight trainer are simple and standardised. Optional electric motors allow an excellent force feedback. The entire system is mounted on a frame which allows trouble-free access from the front. All parts of the flight trainer can be easily removed.
Modular Electronics Push buttons and controls as well as the annunciator panels and other indicators are run by ALSIM's highly sophisticated electronic system which is characterised by:
* Real time compatibility: a 200 times per second up-date
* Simple wiring: a single wire runs from one part of the simulator to the other
* Easy maintenance: software, which is equipped with a multi-window graphical interface,
runs the system.
Instructor's Station Instructor's station comprises all the management functions needed to conduct lessons such as:
* Positioning of the aircraft
* Freezing of parameters
* Saving of paths
* Activation of different kind of failures
* Registration of a prepared lesson plan.
The above functions allow instructors to cover a multitude of complex pedagogical situations, these are accessible via a user-friendly interface and touchscreen.
It also includes a program to carry out regular data up-dates for landing strips and beacons.
If you would like to see the manufacturers brochure... please click this link.Visual SystemA frontal projection visual system. An LCD projector, its support structure as well as projection screen.
CertificationThe AL 50 has been designed to correspond to JAR STD-4A BITD norms. This entails that certification takes place at the factory. In the FNPT l version, the AL 50 comes with a QTG as well as the QTG player software. This enables its users to carry out QTG test runs in accordance with official regulations. All information and material needed to handle the certification are put at the disposal of the client at the delivery of the device.
Assistance at certification can be taken out as an option as also Extended Warranty.
CREDITS AVAILABLECredit hours according to the JAR FCL:
* PPL:
5 hours * CPL:
5 hours * Up to 2
0 hours for the IR course if in FNPTI configuration.
Maintenance TrainingAfter Sales Services
This AL 50 is delivered with a 6month Warranty. Once the guarantee has expired, we can offer separate maintenance contract if needed.

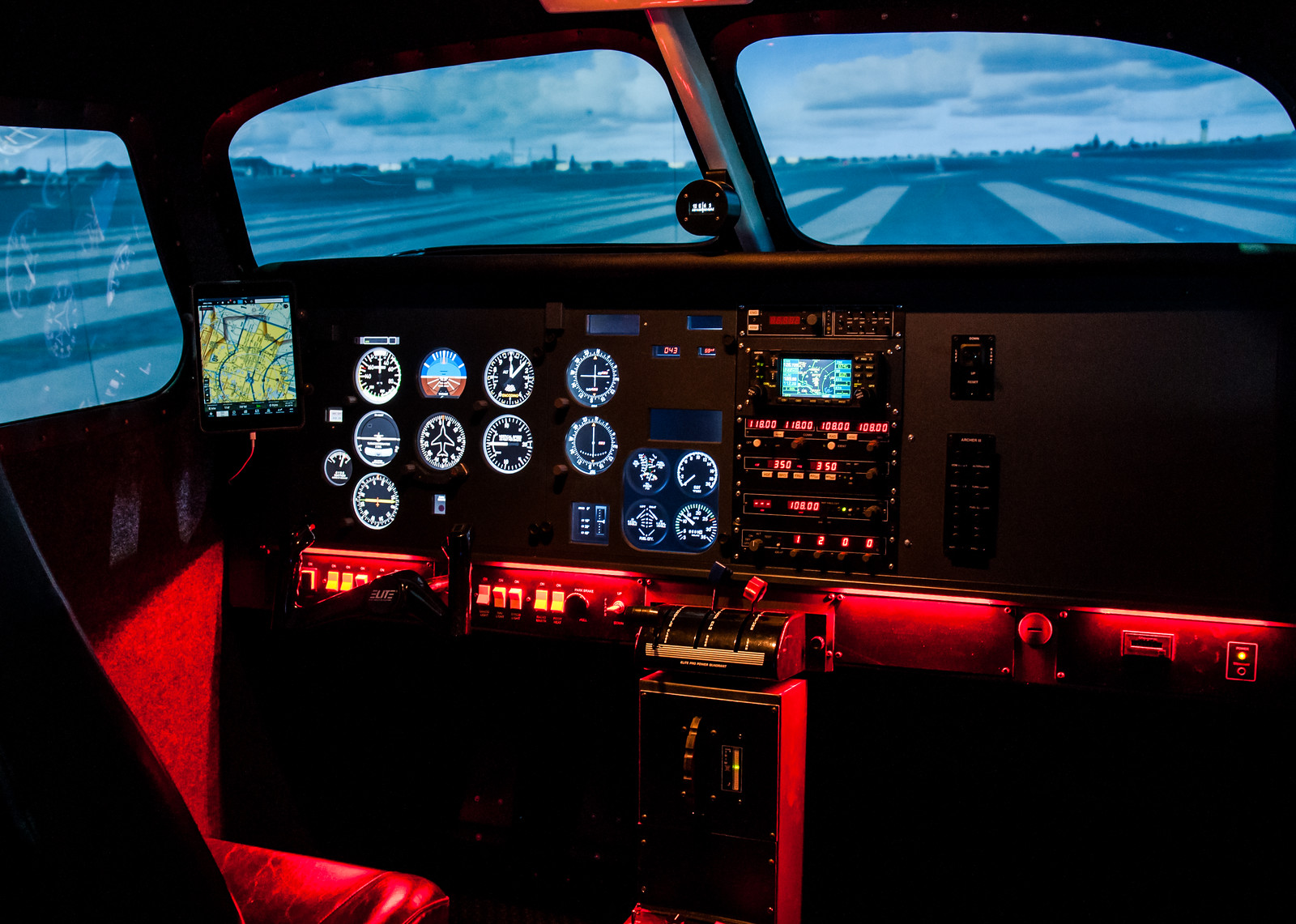

Included ItemsSingle Seat Cockpit
Motorized projection screen
1x HD projector
1x PC with flight sim software pre-loaded
1x instructor station with software pre-loaded
The SIM would be supplied with a range of spares.
Finance Options available.Contact us for further details.
