Guimbal Cabri G2 Helicopter Simulator
Guimbal Cabri G2 Helicopter Simulator - view 1Guimbal Cabri G2 Helicopter Simulator - view 2Guimbal Cabri G2 Helicopter Simulator - view 3Guimbal Cabri G2 Helicopter Simulator - view 4Guimbal Cabri G2 Helicopter Simulator - view 5Guimbal Cabri G2 Helicopter Simulator - view 6Guimbal Cabri G2 Helicopter Simulator - view 7Guimbal Cabri G2 Helicopter Simulator - view 8Guimbal Cabri G2 Helicopter Simulator - view 9Guimbal Cabri G2 Helicopter Simulator - view 10Guimbal Cabri G2 Helicopter Simulator - view 11

Guimbal Cabri G2 Helicopter Simulator

Guimbal Cabri G2 Helicopter Simulator.

Ideal for customers learning to fly a helicopter with realistic simulation software. Fully customisation available
Replica Flight Controls
Cyclic, Collective, Torque Pedals, Rotor Brake / Mixture Lever

Instrument panel consists of the following:

Electronic Pilot Monitor - EPM
Warning Light Panel
Garmin GNS430 / GNS530
Programmable Rotary Switch Panel
Touch Screen Instrument Panels
Instructor Station
Clock
Standby Instrumentation
Transponder
Heading Indicator
Artificial Horizon
VSI

This simulator and software have been designed to offer a realistic representation of the actual helicopter with a close flight model.

Contact us for more details. mailto: sales@flight-simulators.co.uk


* Pictures and setups may differ from the actual product, and depend on the options selected. All pictures and documents available on this website are strictly nonbinding.

Robinson R22 / R44 Simulator
Robinson R22 / R44 Simulator - view 1Robinson R22 / R44 Simulator - view 2Robinson R22 / R44 Simulator - view 3Robinson R22 / R44 Simulator - view 4Robinson R22 / R44 Simulator - view 5Robinson R22 / R44 Simulator - view 6Robinson R22 / R44 Simulator - view 7Robinson R22 / R44 Simulator - view 8Robinson R22 / R44 Simulator - view 9Robinson R22 / R44 Simulator - view 10Robinson R22 / R44 Simulator - view 11

Robinson R22 / R44 Simulator

Robinson R22/R44 Helicopter Simulator

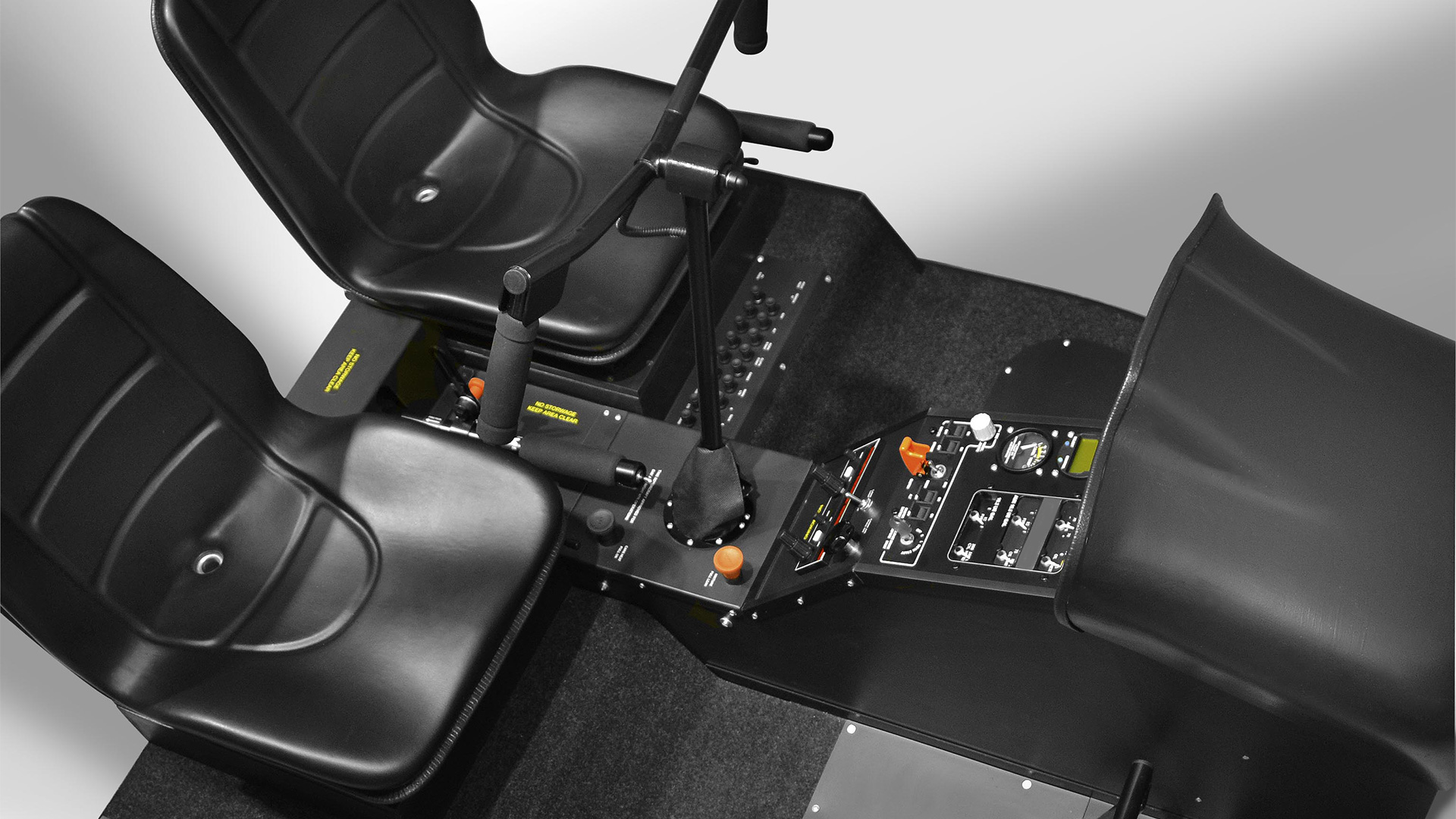

Features of the FAA Approved Robinson R22 AATD
- Realistic T-Bar cyclic complete with push to talk triggers, anti-torque pedals and collectives with twist grip throttle controls and governor’s.
- Realistic G430 GPS unit with updatable data base.
- Replica Fiberglass cockpit.

Features of the FAA Approved Robinson R44 AATD:
The main characteristics are set out below and consist of the following;

- Realistic flight model.
- Realistic T-Bar cyclic complete with push to talk triggers, anti-torque pedals and collectives with twist grip throttle controls and governors.
- Original OEM Garmin G500TXi GDU and Original OEM GTN750 with updatable data base.
- Digital chronometer, VSI, Altimeter, TAS, Artificial Horizon, Compass and engine instruments.
- Autopilot, Intercom, Replica GTR22 Com radio, and transponder.
- Curved screen scenery system providing 220° out of cockpit visuals.
- Terrain model reflecting realistic environment of the EPDE airport area and many other generic airports in Poland.
- Replica Fiberglass cockpit. Cockpit color is white.

Optional enhancements available:
- Additional Visual Channels
- Bespoke custom built 3D visual scenarios
- Enhanced 3D visual software package
- Cockpit Shell

Training Capabilities - FNPT II
* Basic and advanced instrument training
* Navigation and procedural training
* Procedural and SOPs training
* Garmin G500Txi familiarization
* Systems Familiarization
* Practice of instrument approaches not commonly used by particular crews
* ILS, VOR and NDB approaches
* PBN / RNP approaches (LNAV - LNAV/ VNAV - LPV), if GPS selected.
* Hand flying and instrument scans + AP
* Crew familiarization of instruments and Panels
* LOFT combined with emergency conditions
* Emergency procedures and drills

QRH Failures

In addition to the standard failures as set out in the XPlane software, We have also developed and integrated many of the Quick Reference Handbook (QRH) failures into the simulator.

Training, detailed manuals and special features
Training will be provided to the personnel who are to use the simulation device and this will cover both the use and general maintenance of the synthetic trainers. Standard Operating Manual (STOM) and maintenance schedules for the device is supplied.

Training Exercises and Climatic conditions
Pre-Programed into the software specific exercises with corresponding climatic conditions in order for users of the systems to conduct rescue, reconnaissance and recurrent exercises.

Instrument Panel
The Instrument and centre console of the R44 unit is in close likeness of that found in the customer’s aircraft with GTN750 GPS, G500 TXi, wet compass and intercom system.

Controls
The T-Bar Cyclic controls, Anti-Torque Pedals with twist grip Collective system with governors closely replicate the controls found in the actual aircraft with Dynamic Control Loading

Instructors Station
The Instructors Workstation or IOS consists of the following hardware; A central touchscreen that has the primary instruments on display and a number of custom-made failures for easy access by the instructor so that at the touch of the screen a specific failure can be activated. Included on this display is a camera display which enables the instructor to monitor the Pilot and Co-Pilot, as well as a pause button which will halt the flight so that specific instruction can be given.
A second touchscreen is located above the touch screen which enables the instructor to control items like the weather, additional failures, wind and also monitor and record the aircrafts flight track.
The system also comes with a printer, Hobbs meter and automatic start-up buttons so that the system can be totally controlled from the Instructors Workstation. A colour laser printer is included to record and print flights for record purposes.


* Pictures and setups may differ from the actual product, and depend on the options selected. All pictures and documents available on this website are strictly nonbinding.

HSTD1 Basic
HSTD1 Basic - view 1HSTD1 Basic - view 2

HSTD1 Basic

Presenting the NEW HSTD1 Basic Personal Helicopter Trainer. Because of customer demand, our programmers and engineers have worked hard to design and produce an affordable high quality rotary wing VFR trainer for flight schools and an entertainment and training platform for the helicopter flight enthusiast and home user. The flight model is based on the single engine turbine Eurocopter AS-350 helicopter. Optional Bell 206 / Robinson R22 / Calibri G2 / MD500

Perform all helicopter maneuvers from hover, hover taxi, quick stops, confined areas, pinnacle landings and even autorotations. The HSTD1 Basic includes the stunning visual graphics of Prepar3D by Lockheed Martin. Fly in rain, snow, reduced visibility, turbulence, thunderstorms and variety of cloud conditions. Conduct helicopter maneuvers in both day and night settings. Many malfunction capabilities such as loss of tail rotor, loss of tail rotor thrust and instrument partial panel are available as well.

All flight controls including cyclic and collective switches are interfaced to the computer with a single USB cable simple and effective. Plug & Play

The same single turbine engine rotary wing aerodynamic model is used in the our more advanced devices based on the Eurocopter AS-350. The ability to start, perform run up and shutdown procedures were removed for the convenience of operation. The HSTD1 Basic is fully instrumented and includes a GNS 530 WAAS for GPS and VOR navigation and approaches. The heading bug, OBS and radar altimeter is controlled by physical knobs.

The system comes complete with the seat platform with seat, cyclic, collective, anti-torque pedals, hooded instrument monitor with mount, 65 inch LED TV, GPS and heading bug control module and PC computer with pre-installed helicopter and visual scenery software.

A two year warranty against manufacturer’s defect is included at no extra cost.

*iPad and iPad Mount not included.

_______________________________________________________________________

NAVIGATION DATA
Europe, United States navigational and visual
database standard

* World data available
* International GPS database

AVIONICS,

INSTRUMENTATION AND HARDWARE
* GNS 530W
* NAV1/ILS
* Flight Director
* RMI
* Turn and Bank indication
* Compass w/OAT
* ForeFlight connection

MALFUNCTIONS
* Accurately modeled insidious failure behavior
* Virtual instrument covers (for partial panel work)

Rotor: AS-350

Optional Equipment

iPad Simcontrol/Foreflight
3 Screen Visual
Live ATC

WEATHER
* Advanced static and/or dynamic weather modeling
* Full control of wind, turbulence, visibility, clouds, temperature, pressure and icing
* Create and save an unlimited number of weather "state" files

Instructor Station
* Horizontal, vertical, and extended profile views
* Airspeed graph
* Flight data recorder with VCR-style playback control
* Virtual airport facility directory
* Transponder tag, w/squawk code, heading and altitude readout

* Quick click and drag aircraft repositioning
* Real-timeand/or recorded flight instrument presentation
* Route planner
* Heading/Distance MAP cursor (instant E6B-style calculations)
* Print. save, and replay an unlimited number of aircraft "path" files
* Create and save an unlimited number of aircraft "state" files


* Pictures and setups may differ from the actual product, and depend on the options selected. All pictures and documents available on this website are strictly nonbinding.

HSTD1 Intermediate

HSTD1 Intermediate

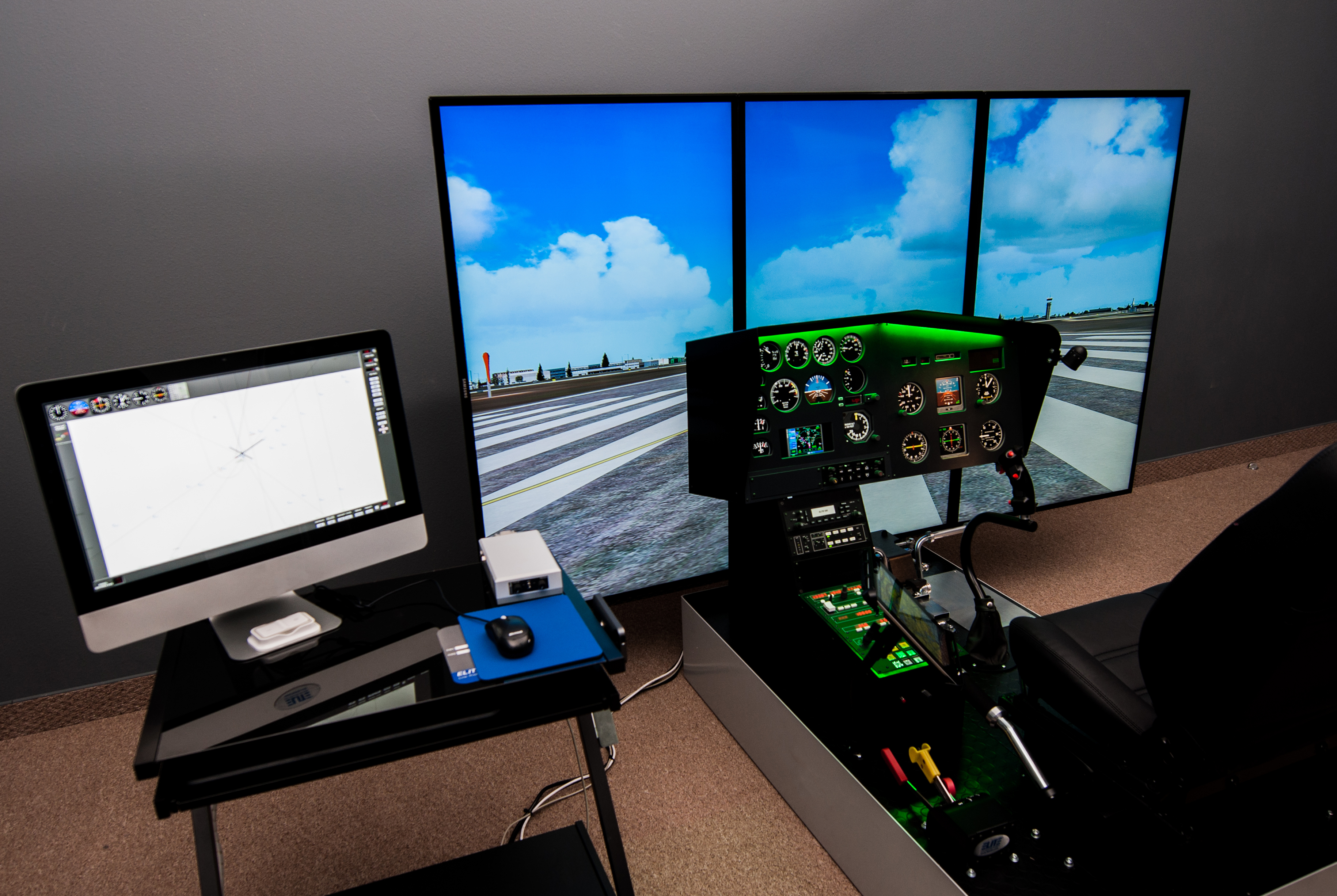

Our HSTD1 Intermediate is a new Mini Helicopter is a compact, fully featured single turbine helicopter simulator based on the Airbus AS350B. This system features life size, high resolution instruments, lighted-Bendix/King Silver Crown style avionics, Garmin 430 WAAS simulation, instructor station, and external visual system with large screen display as standard equipment. It utilizes an open and optimized structural construction that is strong and rigid, yet thin enough to fit through a standard door opening for easy transport and integration. The high fidelity flight model will allow you to perform many complex manoeuvres and procedures, everything from the start-up to the shutdown checklists. The Mini Helicopter will enable you to unleash valuable rotary wing training possibilities.

Features of the HSTD1 Intermediate
- Cyclic, Collective, levers for Rotor Brake, Fuel Flow, and Fuel Shut­off
- Anti-torque pedals
- High-resolution instrument panel display screen
- Built-in pilot seat
- Bendix/King Silver Crown Avionics
- Inte­grated vir­tual GNS430 WAAS GPS
- Full autopi­lot capa­bil­ity with Flight direc­tor and nav­i­ga­tion cou­pling to VOR & GPS.
- 55-inch LCD mon­i­tor with cus­tom stand
- Graphical Instructor’s Sta­tion with desk
- Single Channel Image Generator
- 2 years full warranty


* Pictures and setups may differ from the actual product, and depend on the options selected. All pictures and documents available on this website are strictly nonbinding.

HSTD1 Advanced
HSTD1 Advanced - view 1HSTD1 Advanced - view 2HSTD1 Advanced - view 3HSTD1 Advanced - view 4HSTD1 Advanced - view 5HSTD1 Advanced - view 6HSTD1 Advanced - view 7HSTD1 Advanced - view 8HSTD1 Advanced - view 9HSTD1 Advanced - view 10HSTD1 Advanced - view 11

HSTD1 Advanced

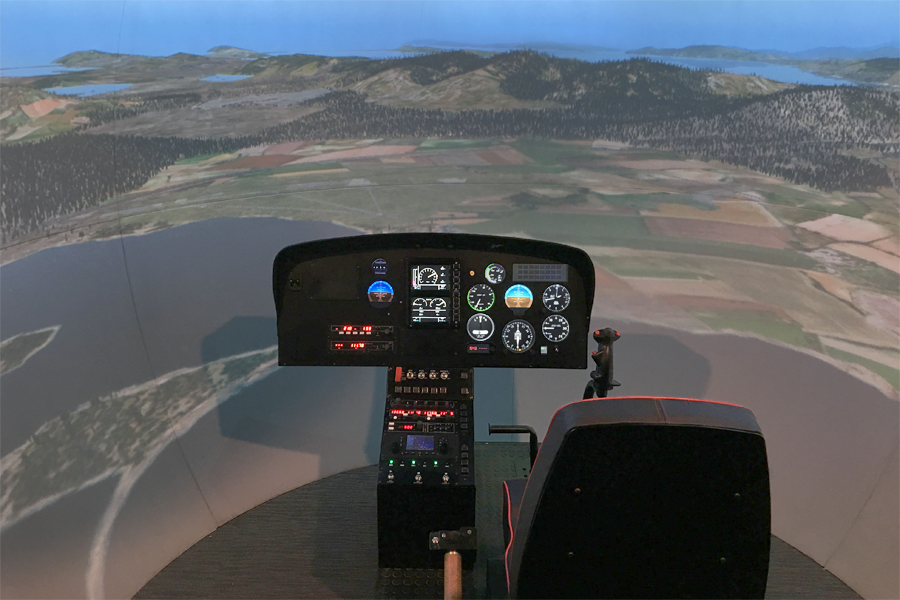

The HSTD1 Advanced open cockpit helicopter is a single engine turbine trainer based on the performance of the Eurocopter AS350B. It features the same professional feel and quality flight controls and throttle unit as its big brother, the S623/S723 cockpit trainer. The difference is that it is single pilot use only and smaller open cockpit design for space constraints. It offers the same center console with aircraft specific switches, optional real Garmin GNS 430W/530W or GTN650/750, pilot instrument panel with mask and adjustments at the instrument and same professional CANBUS style electronics for reliability and maintainability. An upgraded adjustable leather seat if provides unparalleled comfort and ergonomic support.

Features of the HSTD1 Advanced Helicopter simulator:
* Life-sized instrument panel with glare shield and ergonomically correct adjustable instrumentation
* Optional EFS-40 (EFIS) navigation system
* 3D Audio system with built in speaker system
* Intercom system with pilot and instructor headsets
* Eurocopter-style lighted aircraft specific system switches
* Adjustable night light
* Adjustable premium leather seat with lumbar support
* Enhanced world-wide scenery encompassing 22,000 airports
* Clear-to-severe weather conditions including turbulence, icing and precipitation with intensity control
* Professional-quality flight controls that are balanced and dampened for the most realist feel and response.

Optional enhancements available:
* EFIS upgrade (King EFS40/50)
* Additional GPS receivers such as real Garmin GNS 430W/530W or GTN 650/750
* Additional Visual Channels
* Custom built 3D visual scenarios
* Enhanced 3D visual software package

Maximum credits available:

FAA APPROVED ADVANCED ATD

* Log 2.5 Hrs towards the PRIVATE
* Log 20 Hrs towards the INSTRUMENT
* Log 25 Hrs towards the ATPL
* Log 50 Hrs towards the COMMERCIAL
* Recent Flight Experience (maintain currency)
* Instrument Proficiency Check (partial)
* Instrument Practical Test (partial)

CASA CAT B FSD2 & NZ CAA APPROVED
* 20 out of the 40 hours required for Instrument Rating
* Cross-country instrument flight
* All approaches including GPS non-precision approaches
* Recency (includes two out of the three hours per 90 days and all approaches

Dimensions
* BASE: 60 x 40 x 43 in (including speakers)
* Distance to Monitor: 20 in
* Weight: approx. 440 lbs

* Pictures and setups may differ from the actual product, and depend on the options selected. All pictures and documents available on this website are strictly nonbinding.

HSTD-22
HSTD-22 - view 1HSTD-22 - view 2HSTD-22 - view 3HSTD-22 - view 4HSTD-22 - view 5HSTD-22 - view 6HSTD-22 - view 7HSTD-22 - view 8HSTD-22 - view 9

HSTD-22

Working closely with our partners, we offer the newest addition to their fleet of helicopter train-ing devices. From start-up, run up to shut down, HSTD-22 models the form, function and perfor-mance of the Robinson R22 piston helicopter.

The fidelity of this helicopter flight training device gives benefits beyond the instrument, com-mercial, ATP and 7.5 hours VFR flying credits. The accuracy of this trainer allows procedural training for most VFR practical test standards, emergency procedures including brown-out oper-ations and IIMC recoveries. The orientation and size of the visual display gives the correct spa-tial orientation for hover training, confined area landings, pinnacles, auto rotations and deceler-ation manoeuvres.

Features of the HSTD-22 or HSTD-22S include:

* Robinson Cyclic (T-bar)
* WAAS GNS 530 GPS
* Dual-Control, Two-Seat or Single-Seat, Single-Control
* Motion platform* (optional)
* Tablet/handheld based instructor station
* Foreflight, iPad EFB, and PilotEdge PilotEdge ATC Compatible

FAA Credits Awarded:
* 7.5 Toward Private
* 20 Toward Instrument
* 25 Toward Commercial
* 25 Toward ATP
* Instrument Proficiency Checks
* Instrument Currency
* View the FAA Letter of Approval for additional details and part 141 awarded credits.

Additional Options:
* Additional Visuals
* Motion Feedback

* Pictures and setups may differ from the actual product, and depend on the options selected. All pictures and documents available on this website are strictly nonbinding.

Schweizer S300
Schweizer S300 - view 1Schweizer S300 - view 2Schweizer S300 - view 3Schweizer S300 - view 4Schweizer S300 - view 5Schweizer S300 - view 6Schweizer S300 - view 7Schweizer S300 - view 8Schweizer S300 - view 9

Schweizer S300

Schweizer S300 BCi DualTrainer Simulator

A new addition for 2021 the flight school for Ab Initio Helicopter pilot training.


Schweizer S300 Cockpit Shell (Length 200cm, Width 130cm, Height 180cm
Width of Skid Landing Gear 200cm)
Avionic Panel
Schweizer S300 Collective (fully functional)
Authentic Cyclic Sticks
Torque Pedals

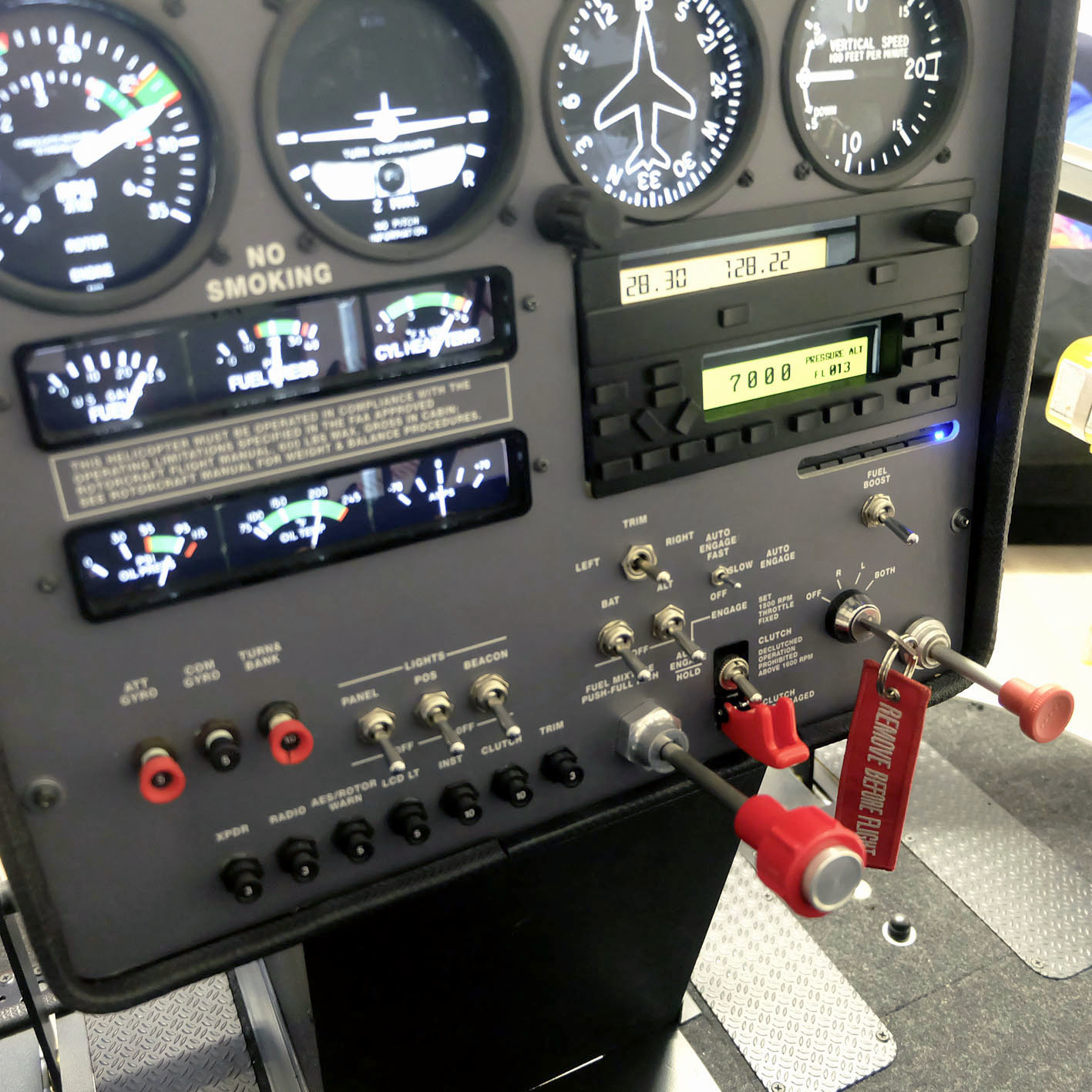

Main Panel Includes the following instruments and items:

Manifold pressure
Airspeed indicator
Horizon
Altimeter
Rotorrpm
Turn coordinator
Direction indicator
Vertical Speed indicator
Fuel tank quantity indicator
Fuel pressure indicator
Cylinder head temperature indicator
Engine oil pressure indicator
Engine oil temperature indicator
Ammeter
Fuel pump switch
Magneto switch
Clutch disengaged annunciator
Rotor clutch switch
Altinator ON- Off switch
Engine mixture lever
Battery switch

Contact us for further details. sales@flight-simulators.co.uk

* Pictures and setups may differ from the actual product, and depend on the options selected. All pictures and documents available on this website are strictly nonbinding.

Bell Jet Ranger Simulator
Bell Jet Ranger Simulator - view 1Bell Jet Ranger Simulator - view 2Bell Jet Ranger Simulator - view 3Bell Jet Ranger Simulator - view 4Bell Jet Ranger Simulator - view 5Bell Jet Ranger Simulator - view 6Bell Jet Ranger Simulator - view 7Bell Jet Ranger Simulator - view 8Bell Jet Ranger Simulator - view 9Bell Jet Ranger Simulator - view 10Bell Jet Ranger Simulator - view 11

Bell Jet Ranger Simulator

FINANCE AVAILABLE (subject to status)

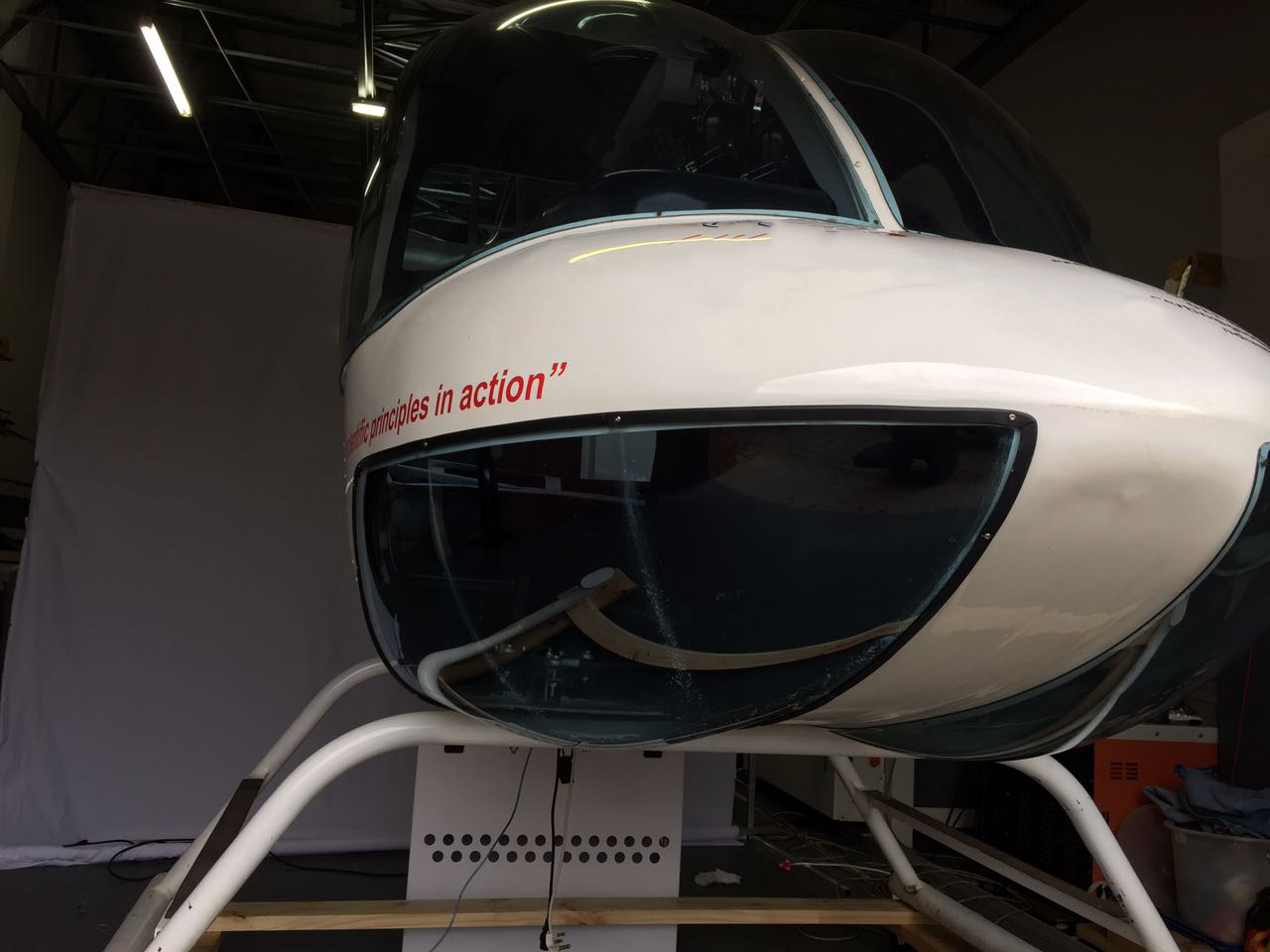

Included with our helicopter simulator portfolio is a Jet Ranger simulator with dual controls.

4 x aviation grade windows
2 x sets of seats mounted onto seat base
1 x centre console panel ( to fit radio stack)
1 x instrument panel console (to fit LCD screen for flight instruments)
1 x broom box ( panel in between 2 seats to fit fire extinguisher onto)
1 x dog box (panel on top of roof- to mount speakers for engine sound)
1 x overhead panel console ( to fit panel with toggle switches and circuit breakers)
1 x High End PC for simulation of instruments and Single Channel Visual.

Optional: Control Loaded Cyclic, Collective & Torque Pedals, Multi Channel Projection Systems, Virtual Reality.

* Pictures and setups may differ from the actual product, and depend on the options selected. All pictures and documents available on this website are strictly nonbinding.

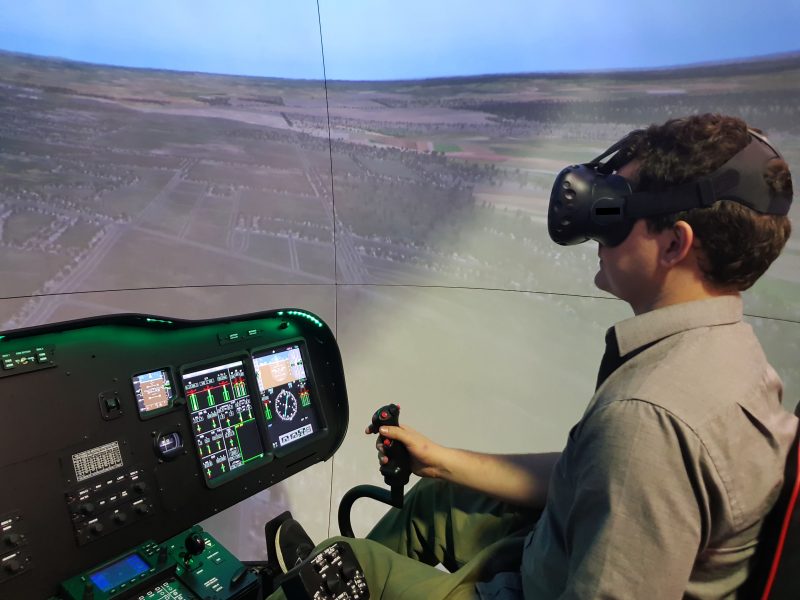

Augusta Westland AW139 Helicopter Simulator
Augusta Westland AW139 Helicopter Simulator - view 1Augusta Westland AW139 Helicopter Simulator - view 2Augusta Westland AW139 Helicopter Simulator - view 3Augusta Westland AW139 Helicopter Simulator - view 4Augusta Westland AW139 Helicopter Simulator - view 5Augusta Westland AW139 Helicopter Simulator - view 6Augusta Westland AW139 Helicopter Simulator - view 7

Augusta Westland AW139 Helicopter Simulator

FINANCE AVAILABLE (subject to status)

Built for Safety
What Advantage do we offer?


Attractive Pricepoint
Effective cost saving oppurtunities
Accurate EPIC PRIMUS MFD and PFD
Key Centre-Console Instruments
Type-specific controls
Can be certified to EASA/FAA standards
CASA Category B Accreditation
20 of 40 hours for instrument rating
2 of the 3 hours every 90 days for recency and concurrent training
DOME scenery compatibility for increased immersion
Optional NVG compatibility for advanced training
Small footprint - single user platform to full cockpit

CASA FSD2Cat B Accreditation already certified.

Initial Issue:
o 20 hours instrument time
o DME or GPS arrival
o 15 hours cross country time
Recency:
o Two hours (of the three) instrument time requirements in 90 days
o NDB, VOR, ILS, LLZ, GPS/NPA, DME or GPS arrival.
o One hour instrument time in 90 days for single Pilot recent experience requirements.
Renewal:
o NDB, VOR, ILS, LLZ, GPS/NPA
Flight Crew Licensing Credits:
o Instrument ground time
o Aeronautical experience
o Regular Flight Reviews

OPTIONAL ADDONS
DOME, NVG, Force Trim, Force Feedback

The Augusta Westland 139 (Leonardo AW139) is fast becoming the rising star of the helicopter world due to its sheer versatility - yet as we looked around there was a clear absence of high quality trainers at an affordable price. So we introduced the GeoSim AW139 Trainer, a high-fidelity trainer with accurate reproductions of the EPIC PRIMUS PFD and MFD featuring many important functions that you would find on the real units.

We believe quality training is key so we have also accurately recreated many of the instruments you’d expect to find such as the RIC, Flight Director, NavCom and Fuel, Misc, Audio, PMS panels. Our unit also features immersive AW139 replica controls modelled off the real aircraft. The AW139 pedals, collectives with AW139 collective heads and our NEW force trim system are perfect to gain the attention of the pilot and keep them immersed. For unparalleled immersion we offer a range of DOME Scenery Presentation Systems including our 2.3 meter 180°, 3 meter 240° and 4 meter 270° wrap-around screens with vertical curvature to maximise peripheral view - an essential for helicopter simulation.

We have fitted this Helicopter simulator on a 6DOF Full Motion Platform offering immense fidelity and realism, capable to simulating almost any situation...... please contact us for details


* Pictures and setups may differ from the actual product, and depend on the options selected. All pictures and documents available on this website are strictly nonbinding.

Bell B206 Helicopter Simulator
Bell B206 Helicopter Simulator - view 1Bell B206 Helicopter Simulator - view 2Bell B206 Helicopter Simulator - view 3Bell B206 Helicopter Simulator - view 4Bell B206 Helicopter Simulator - view 5Bell B206 Helicopter Simulator - view 6Bell B206 Helicopter Simulator - view 7

Bell B206 Helicopter Simulator

FINANCE AVAILABLE (subject to status)

Built for Safety
What Advantage do we offer?


Realistic Instrumentation
Immersive Type-Specific Controls
Updatable Garmin 430
Full-featured Centre Console
Accurate Flight Model
Attractive Pricepoint
Effective cost saving oppurtunities
CASA Category B Accreditation
20 of 40 hours for instrument rating
2 of the 3 hours every 90 days for recency and concurrent training
DOME scenery compatibility for increased immersion
Optional NVG compatibility for advanced training
Small footprint - single user platform to full cockpit
Customised to your cockpit layout!

EASA / FAA Approvable
CASA FSD2Cat B Accreditation


Initial Issue:
o 20 hours instrument time
o DME or GPS arrival
o 15 hours cross country time
Recency:
o Two hours (of the three) instrument time requirements in 90 days
o NDB, VOR, ILS, LLZ, GPS/NPA, DME or GPS arrival.
o One hour instrument time in 90 days for single Pilot recent experience requirements.
Renewal:
o NDB, VOR, ILS, LLZ, GPS/NPA
Flight Crew Licensing Credits:
o Instrument ground time
o Aeronautical experience
o Regular Flight Reviews

OPTIONAL ADDONS
DOME, NVG, PLATFORM, COCKPIT

Since it’s introduction the Bell 206 has been one of the mainstays of the aviation industry. Similarly our Bell B206 Part Task Trainer has been one of our most popular flight simulators to date - it’s versatility lending itself to everyone from commercial operators to flight schools. Our B206 model is available in both a full cockpit variety (perfect for one of our dedicated trailers) as well as a compact platform model for smaller spaces. Combined with our unique Dome Scenery Systems our simulators offer a high level of immersion at an impressive pricepoint! Ideal for training Police, Oilfield Platform, Medical, Pilot Training and Public Transport Training Operations.


* Pictures and setups may differ from the actual product, and depend on the options selected. All pictures and documents available on this website are strictly nonbinding.

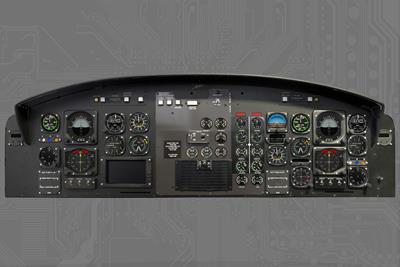

Bell B412 EP Helicopter Simulator
Bell B412 EP Helicopter Simulator - view 1Bell B412 EP Helicopter Simulator - view 2

Bell B412 EP Helicopter Simulator

FINANCE AVAILABLE (subject to status)

The Bell 412 has a long history as a reliable and versatile workhorse in the aviation industry. Consequently the Bell 412EP has been a popular update, marrying modern features to impressive performances boosts. To answer the training needs of such an advanced helicopter GeoSim Technology has created an all-new 412EP simulator with a high fidelity flight model, helping to achieve better, safer training.

Our unit also features immersive controls modelled off the real aircraft complete with pedals, collectives with 412EP collective heads and centre console instruments to grab the attention of the pilot and keep them immersed. For unparalleled immersion we offer a range of DOME Scenery Systems up to 300° wrap-around screen with vertical curvature to maximise peripheral view - an essential for helicopter simulation.


Available based on the following models:
* Bell-412 EP
* Bell-412 EPI with Bell BASIX
* Bell-429 Bell BASIX System


* Pictures and setups may differ from the actual product, and depend on the options selected. All pictures and documents available on this website are strictly nonbinding.

Bell B412 EPI Helicopter Simulator
Bell B412 EPI Helicopter Simulator - view 1Bell B412 EPI Helicopter Simulator - view 2Bell B412 EPI Helicopter Simulator - view 3Bell B412 EPI Helicopter Simulator - view 4Bell B412 EPI Helicopter Simulator - view 5Bell B412 EPI Helicopter Simulator - view 6Bell B412 EPI Helicopter Simulator - view 7

Bell B412 EPI Helicopter Simulator

FINANCE AVAILABLE (subject to status)

Built for Safety
What Advantage do we offer?

Attractive Pricepoint
Effective cost saving oppurtunities
Accurate Bell BasiX reproduction
Key Centre-Console Instruments
Type-specific controls
Ready for Authority Approvals EASA / FAA

CASA Category B Accreditation
20 of 40 hours for instrument rating
2 of the 3 hours every 90 days for recency and concurrent training
DOME scenery compatibility for increased immersion
Optional NVG compatibility for advanced training
Small footprint - single user platform to full cockpit

CASA FSD2Cat B Accreditation

Initial Issue:
o 20 hours instrument time
o DME or GPS arrival
o 15 hours cross country time
Recency:
o Two hours (of the three) instrument time requirements in 90 days
o NDB, VOR, ILS, LLZ, GPS/NPA, DME or GPS arrival.
o One hour instrument time in 90 days for single Pilot recent experience requirements.
Renewal:
o NDB, VOR, ILS, LLZ, GPS/NPA

Flight Crew Licensing Credits:
o Instrument ground time
o Aeronautical experience
o Regular Flight Reviews

OPTIONAL ADDONS
DOME, NVG, COCKPIT

The Bell 412 has a long history as a reliable and versatile workhorse in the aviation industry. Consequently the digital update of the 412EPI and it’s Bell Basix Pro system has been a popular update, marrying modern features to impressive performances boosts. To answer the training needs of such an advanced helicopter GeoSim Technology has created an all-new 412EPI simulator with a high fidelity reproduction of the Bell Basix Pro system, helping to achieve better, safer training.

Our unit also features immersive controls modelled off the real aircraft complete with pedals, collectives with 412EPI collective heads and centre console instruments to grab the attention of the pilot and keep them immersed. For unparalleled immersion we offer a range of DOME Scenery Systems up to 300° wrap-around screen with vertical curvature to maximise peripheral view - an essential for helicopter simulation.

Available based on the following models:
* Bell-412 EP
* Bell-412 EPI with Bell BASIX
* Bell-429 Bell BASIX System


* Pictures and setups may differ from the actual product, and depend on the options selected. All pictures and documents available on this website are strictly nonbinding.

Airbus AS350 Helicopter Simulator
Airbus AS350 Helicopter Simulator - view 1Airbus AS350 Helicopter Simulator - view 2Airbus AS350 Helicopter Simulator - view 3Airbus AS350 Helicopter Simulator - view 4Airbus AS350 Helicopter Simulator - view 5Airbus AS350 Helicopter Simulator - view 6Airbus AS350 Helicopter Simulator - view 7

Airbus AS350 Helicopter Simulator

FINANCE AVAILABLE (subject to status)

Built for Safety
What Advantage do we offer?


Attractive Pricepoint
Effective cost saving oppurtunities
Accurate instrument reproduction
Key Centre-Console Instruments
Type-specific controls
CASA Category B Accreditation
20 of 40 hours for instrument rating
2 of the 3 hours every 90 days for recency and concurrent training
DOME scenery compatibility for increased immersion
Optional NVG compatibility for advanced training
Small footprint - single user platform to full cockpit

EASA / FAA Approvable
CASA FSD2Cat B Accreditation and Certified


Initial Issue:
o 20 hours instrument time
o DME or GPS arrival
o 15 hours cross country time
Recency:
o Two hours (of the three) instrument time requirements in 90 days
o NDB, VOR, ILS, LLZ, GPS/NPA, DME or GPS arrival.
o One hour instrument time in 90 days for single Pilot recent experience requirements.
Renewal:
o NDB, VOR, ILS, LLZ, GPS/NPA
Flight Crew Licensing Credits:
o Instrument ground time
o Aeronautical experience
o Regular Flight Reviews

OPTIONAL ADDONS
DOME, NVG

The AS350, or "squirrel", is a venerable addition to many organisations around the world, from local law enforcement to rescues on some of the highest mountains in the world. One of our clients even uses it to train for their Antarctic flying, conditions where visual reference may be some rocks in a sea of snow and the horizon can disappear completely!

Our unit also features immersive controls modelled off the real aircraft keep the pilot immersed in training. For unparalleled immersion we offer a range of DOME Scenery Systems up to 300° wrap-around screen with vertical curvature to maximise peripheral view - an essential for helicopter simulation.


* Pictures and setups may differ from the actual product, and depend on the options selected. All pictures and documents available on this website are strictly nonbinding.

Airbus AS355 Helicopter Simulator
Airbus AS355 Helicopter Simulator - view 1Airbus AS355 Helicopter Simulator - view 2Airbus AS355 Helicopter Simulator - view 3Airbus AS355 Helicopter Simulator - view 4Airbus AS355 Helicopter Simulator - view 5Airbus AS355 Helicopter Simulator - view 6Airbus AS355 Helicopter Simulator - view 7

Airbus AS355 Helicopter Simulator

FINANCE AVAILABLE (subject to status)

The new Evolution S623T helicopter training device has been customized to the specific requirements enabling the simulation of a twin-turbine helicopter based on the Airbus AS355. This advanced training device features a four-channel external visual system and a fully enclosed helicopter cockpit with dual pilot instrument panels and dual controls. The S623T has been built to meet Australian CASA category B FSD2 synthetic trainer requirements and has received FAA certification as an AATD for the maximum allowable training credits that can be awarded to a helicopter flight training device.

The flight deck is designed to withstand normal loads, shocks and other conditions incidental to normal operation, transportation and assembly. The structure is sufficiently rigid to assure that there is no discernible movement of the Evolution S623T helicopter due to personnel movement or control movement within the flight deck.

The areas included in the simulator are from the anti-torque pedals to the aft of the crew member seats. An open Instructor station is external to the flight deck. The interior of the flight deck is designed according to the helicopter specified above and provides exact pilot ergonomics.

Features of the S623T:
* Dual flight controls
* Pilot / Co-Pilot specific set of instruments
* Full autopilot capability with flight director and navigation coupling to VOR & GPS. AP can be controlled by Pilot or Co-pilot.
* IFR GPS to TSOC129 standard for IFR flight (choice of Trimble or Apollo).
* 120 degree external projected visuals with Pilot chin bubble view.
* AS355 hard shell cockpit design
* Full interactive instructor facilities
* Compact footprint (minimum 4m x 4m)
* 2 years full warranty
* Graphical Instructor's Station w/Desk

Optional enhancements available:
* EFIS upgrade (King EFS40/50)
* Additional GPS receivers such as Garmin GNS 430W or 530W
* Fully enclosed integrated instructor station

Features of the S623 FNPT II Helicopter:
* Pilot/Co-Pilot specific instrumentation
* Full autopilot capability with flight director and navigation coupling to VOR and GPS.
* IFR GPS to TSOC129 standard for IFR flight (choice of Trimble 2000 or Apollo
GX Series)
* 150° x 40° or 270° x 65° (JAA requirement) external projected visuals
* AS350B single-engine cockpit configuration
* Easy maintenance
* Enclosed instructor station (JAA requirement)

Features of the S623T Helicopter:
* Pilot/Co-Pilot specific instrumentation
* Full autopilot capability with flight director and navigation coupling to VOR and GPS.
* IFR GPS to TSOC129 standard for IFR flight (choice of Trimble 2000 or Apollo
GX Series)
* 150° x 40° or 270° x 65° (JAA requirement) external projected visuals
* AS355F1 twin engine cockpit configuration
* Easy maintenance
* Enclosed instructor station (JAA requirement)

Optional enhancements available:
* Several visual upgrades up to 270° x 65°
* Customized specific Airport or area visuals software featuring 3D Objects
* EFIS upgrade (King EFS40/50)
* Garmin GNS 430 / GNS 530
* Specific 3D software models, such as oil rigs

Maximum credits available:
EASA CS-FSTD(H)
* Log 5 Hrs Basic training towards PPL (H)
* Log 5 Hrs Instrument training towards CPL (H) (Integrated)
* Log 20 Hrs Instrument training towards ATP (H) (Integrated)
* Log 5 Hrs Instrument training towards CPL (H) (Modular)
* Log 25 Hrs Instrument training towards IR-SE (H) (Modular)
* Log 30 Hrs Instrument training towards IR-ME (H) (Modular)
* Log 5 Hrs Experience towards FI (H)
* Log 5 Hrs Instructor training towards FI (H)
* Log 10 Hrs Instructor training towards IRI (H)

FAA APPROVED ADVANCED ATD
* Log 2.5 Hrs towards the PRIVATE
* Log 20 Hrs towards the INSTRUMENT
* Log 50 Hrs towards the COMMERCIAL
* Recent Flight Experience (maintain currency)
* Instrument Proficiency Check (partial)
* Instrument Practical Test (partial)

CASA CAT B FSD2 & NZ CAA APPROVED

* 20 out of the 40 hours required for Instrument Rating
* Cross-country instrument flight
* All approaches including GPS non-precision approaches
* Recency (includes two out of the three hours per 90 days and all approaches)

Also meets CASA requirements for recency credits without requiring an instructor to be present.

Available JAR-FSTD H, FAA AATD and CASA CAT B FSD2 approved aircraft models for the Evolution S623/ S623T & S723 Helicopter simulator range are:
* Eurocopter AS350B single engine
* Eurocopter AS355F1 twin engine


* Pictures and setups may differ from the actual product, and depend on the options selected. All pictures and documents available on this website are strictly nonbinding.

Recently Viewed
