Racing Simulator

CKAS Mechatronics is currently manufacturing the next generation arcade and theme park style driving simulators, with some of the most spectacular systems anywhere in the world.

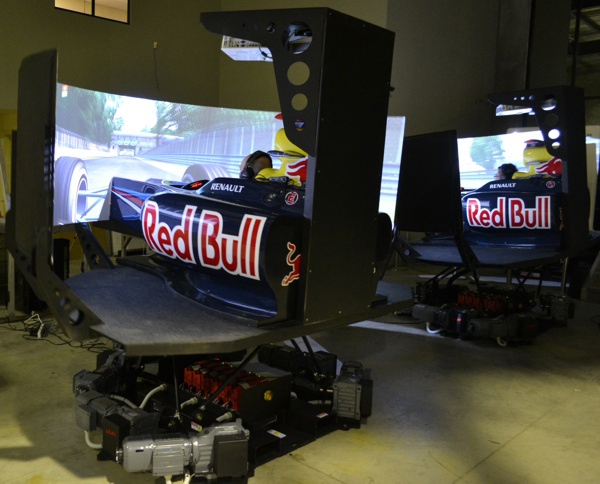

MotionSim3 F1 6DOF Motion Simulator

Our flagship model of all our entertainment simulators is our CKAS MotionSim3 F1 6DOF Motion Simulator. This unit is a full motion Formula 1 style simulator and is essentially a full professional Formula 1 simulator as used by several of the competing Formula 1 Teams.

This simulator is for the most professional and serious entertainment applications, well suited to a specialised racing sim centre, theme park attraction or the most die hard home enthusiast.

With outstanding standard features such as:

Full 6DOF Motion System with Formula 1 specific washout algorithms for recreation of the most subtle inertial effects
Completely immersive 180° (3 x Full HD) projector based visual system, correctly matched to show horizon and open wheel tyres in optically correct location, for unparalleled realism.

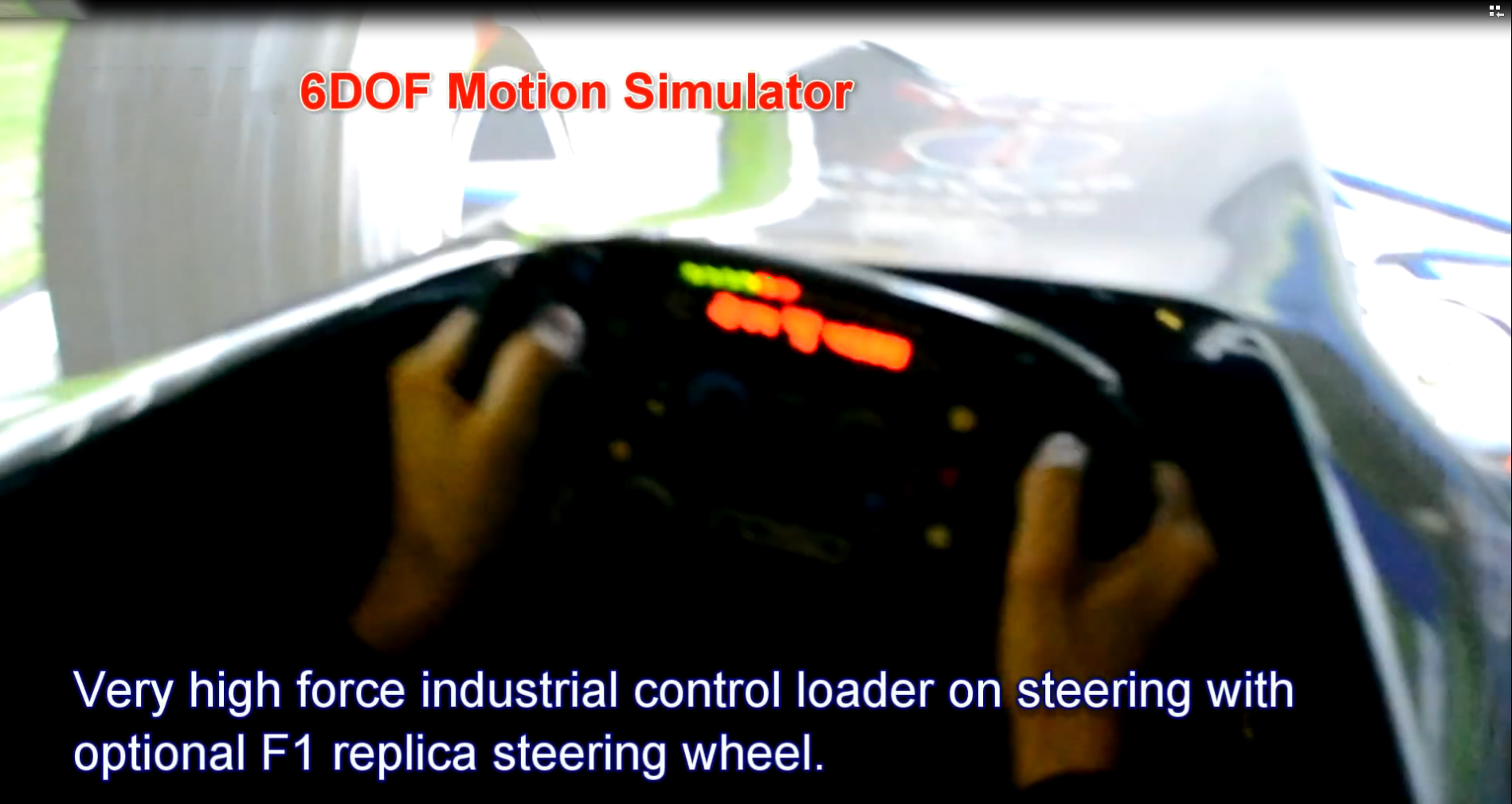

High force professional quality force feedback control loader steering with paddle shift gears
For / Aft electrically adjustable position dual foot pedals (accelerator and brake) to suit most size drivers (max 6"6')

After several laps in the CKAS MotionSim3 F1 6DOF Motion Simulator, the heart rate is high, the forearms are shaky, and the forehead is sweating. You are INSTANTLY punished for any mistakes around the circuit, including touching / hitting walls, ripple strips, other cars, grass, bad gear changes and the list goes on.

All drivers which have had the privilege to drive this incredible Formula 1 Motion Simulator agree that is by far the most difficult – but fair – drive they have ever experienced, and the closest any person will come to a real Formula 1 vehicle.

This unit can be supplied with several options, depending on application, including:

Full custom paint / sticker scheme (supplied in single colour as standard)
Access Stair and barrier system for public applications, permanent or mobile

The standard specifications of the CKAS F1 6DOF Motion Simulator are shown below:
System: CKAS MotionSim3 F1 6DOF Motion Simulator
Motion System: CKAS W5 6DOF Motion System with washout software
Power Requirements: 1 x 200 - 240 V AC @ 15 Amps - No RCD Protection (hard wired) & 1 x 200 - 240 V AC @ 10 Amps regular GPO
PC: High End PC capable of running full game engine visual options

Simulator Game Engine Software

rFactor and rFactor 2 Based Corporate Event or Private User

iRacing

Codemasters F1 Series
Motion Envelope
Width: 3500mm ( 11'6" ) Length: 2800mm ( 9'3" ) Height: 2500mm ( 8'3" )

Visual System: 180° Perspective correct full wrap around visual [ 3 x 1920 x 1080 warped / blended projectors ]



MotionSim1 F1 6DOF Motion Simulator

The most economical professional model of all our entertainment simulators is our CKAS MotionSim1 F1 6DOF Motion Simulator. This unit is an optimised but reduced size full motion Formula 1 style simulator and offers some incredible features.

This simulator is for gaming and entertainment centres, well suited to a racing sim centres, theatre lobbies or some serious home enthusiasts.

With outstanding standard features such as:

Full 6DOF Motion System with Formula 1 specific washout algorithms for recreation of the most subtle inertial effects
Completely immersive Full HD projector based visual system, correctly matched to show horizon and open wheel tyres in optically correct location, for unparalleled realism.
High fidelity pro-sumer quality force feedback steering with F1 steering wheel replica
For / Aft electrically adjustable position dual foot pedals (accelerator and brake) to suit most size drivers (max 6"6')

After several laps in the CKAS MotionSim1 F1 6DOF Motion Simulator, the heart rate is high, the forearms are shaky, and the forehead is sweating. You are INSTANTLY punished for any mistakes around the circuit, including touching / hitting walls, ripple strips, other cars, grass, bad gear changes and the list goes on.

This unit can be supplied with several options, depending on application, including:

Full custom paint / sticker scheme (supplied in single colour as standard)
Access Stair and barrier system for public applications, permanent or mobile

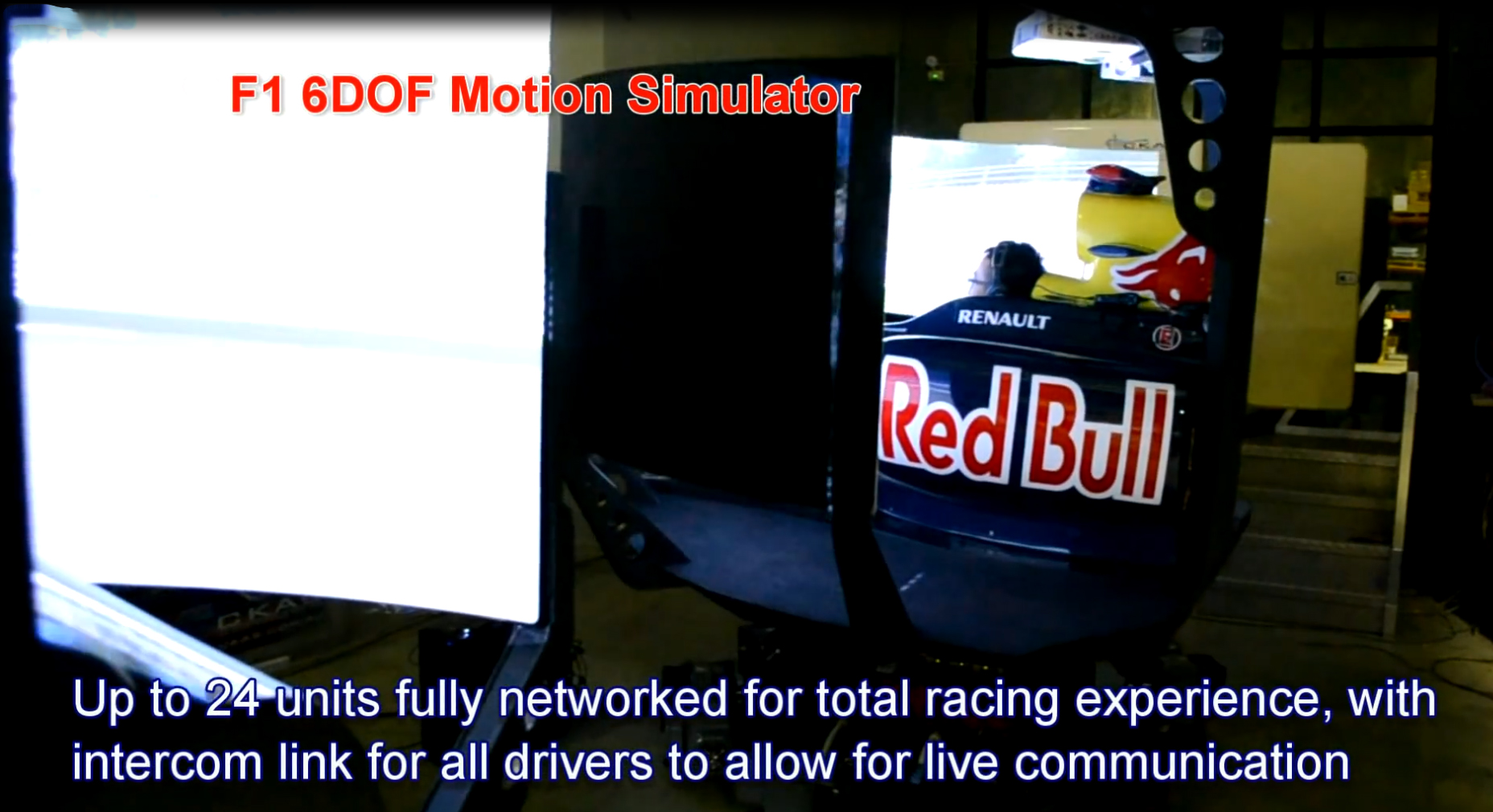

Intercom system for drivers in seperate machines to "trash talk" each other

The standard specifications of the CKAS F1 6DOF Motion Simulator are shown below:
System: CKAS MotionSim1 F1 6DOF Motion Simulator
Motion System: CKAS W3s 6DOF Motion System with washout software
Power Requirements: 1 x 200 - 240 V AC @ 10 Amps regular GPO
PC High End PC capable of running full game engine visual options

Simulator Engine Software

rFactor and rFactor 2 Based Corporate Event or Private User

iRacing

Codemasters F1 Series
Motion Envelope
Width: 2200mm ( 7'3" ) Length: 2600mm ( 8'6" ) Height: 1700mm ( 5'6" )

Visual System: Perspective correct Full HD visual [ 1920 x 1080 projector ]

Note: Custom units of ANY specification can be designed and built to meet specific customer requirements. Please contact us for further information.
